$42.30The Story

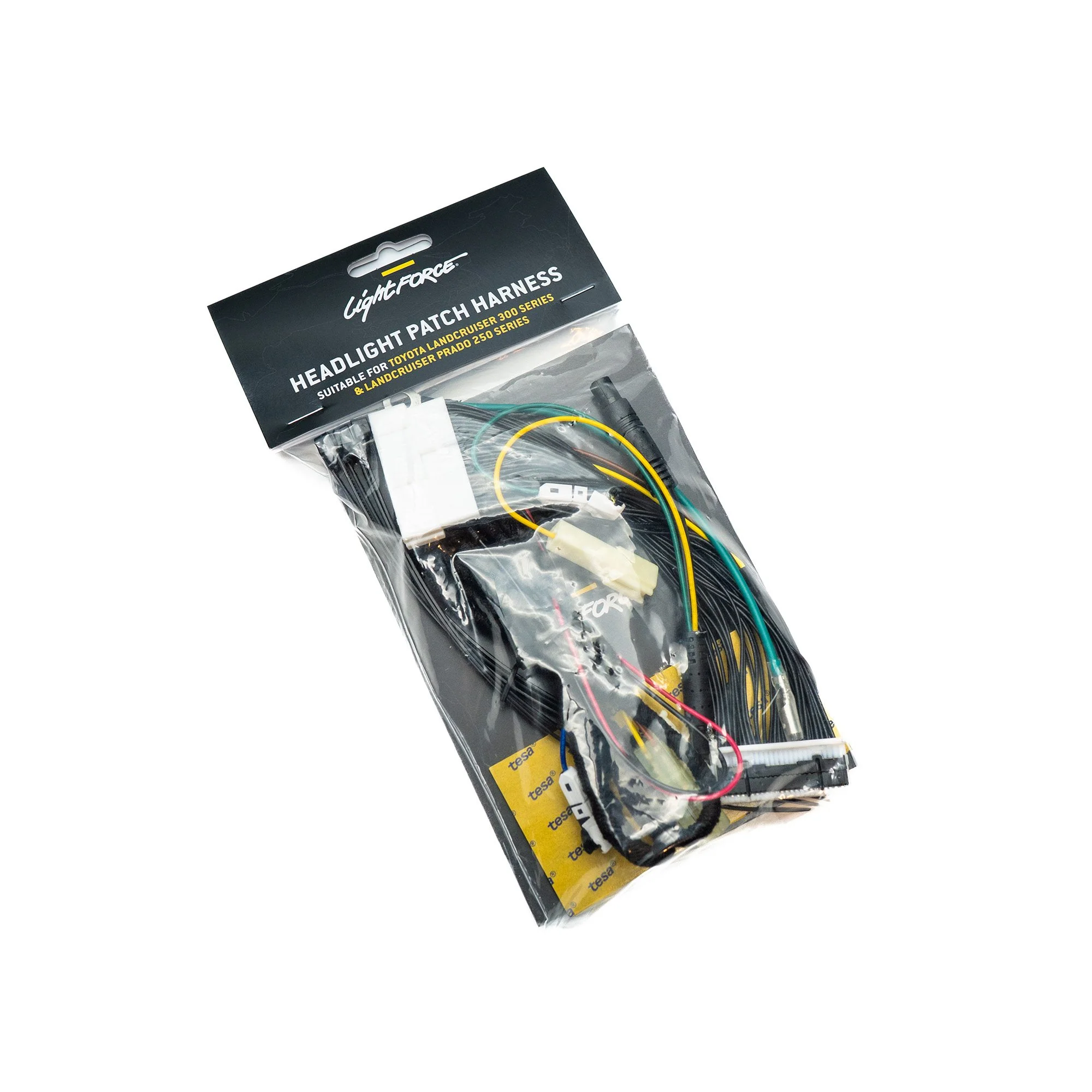

This specifically designed patch harness with logic board is specifically designed for the Toyota Landcruiser 300 Series and Prado 250 Series. It allows for a simple and safe integration into the vehicle's communication module, located inside the cabin under the steering column, thus providing easy integration into the vehicle's headlight system.
Provides a high beam pickup point for a range of Lightforce driving light wiring harnesses.
This patch harness is to be used with the range of Lightforce wiring harnesses and factory style switches for a true plug & play solution, enabling simple DIY installation of auxiliary driving lights and switches.

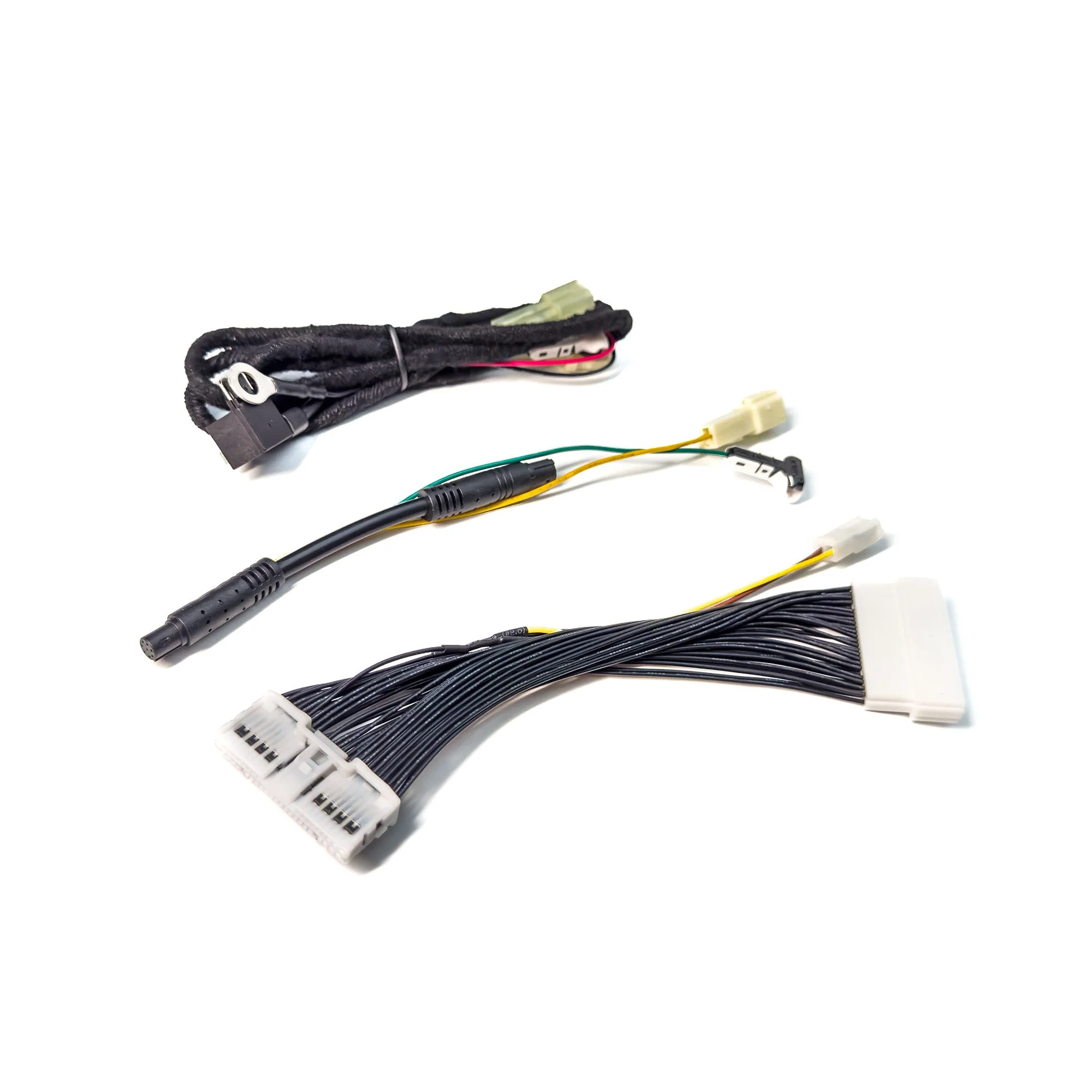

Kit Contents
- 40-Pin Patch Harness
- Logic Harness
- 8-Pin Switch Adapter
- Ground Pickup Wire
Compatibility
Only compatible with LFDLHBEAST-U, LFDLHSS, LFDLHTS2, LFDLHDS and all harnesses supplied with the Lightforce Viper Light Bars (LFLBHVSR and LFLBHVDR).
Note: Excludes positioning lights and DRL function.
| Lightforce Driving Light | Harness | Switch |
|---|---|---|
| BEAST 230 / BEAST 190 | LFDLHBEAST-U | LFSWTY4BST-C |
| HTXMK2 | LFDLHDS | LFSWTY4HTX |
| GENESIS/VENOM | LFDLHTS2 | CBSWTY4DL + SWADP9 |
| STRIKER | (Included with Lights) | CBSWTY4DL + SWADP9 |
| VIPER LIGHTBARS | (Included with Light) | CBSWTY4L + SWADP9 |
Fitment Instructions
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
This specifically designed patch harness with logic board is specifically designed for the Toyota Landcruiser 300 Series and Prado 250 Series. It allows for a simple and safe integration into the vehicle's communication module, located inside the cabin under the steering column, thus providing easy integration into the vehicle's headlight system.
Provides a high beam pickup point for a range of Lightforce driving light wiring harnesses.
This patch harness is to be used with the range of Lightforce wiring harnesses and factory style switches for a true plug & play solution, enabling simple DIY installation of auxiliary driving lights and switches.
Kit Contents
- 40-Pin Patch Harness
- Logic Harness
- 8-Pin Switch Adapter
- Ground Pickup Wire
Compatibility
Only compatible with LFDLHBEAST-U, LFDLHSS, LFDLHTS2, LFDLHDS and all harnesses supplied with the Lightforce Viper Light Bars (LFLBHVSR and LFLBHVDR).
Note: Excludes positioning lights and DRL function.
| Lightforce Driving Light | Harness | Switch |
|---|---|---|
| BEAST 230 / BEAST 190 | LFDLHBEAST-U | LFSWTY4BST-C |
| HTXMK2 | LFDLHDS | LFSWTY4HTX |
| GENESIS/VENOM | LFDLHTS2 | CBSWTY4DL + SWADP9 |
| STRIKER | (Included with Lights) | CBSWTY4DL + SWADP9 |
| VIPER LIGHTBARS | (Included with Light) | CBSWTY4L + SWADP9 |
