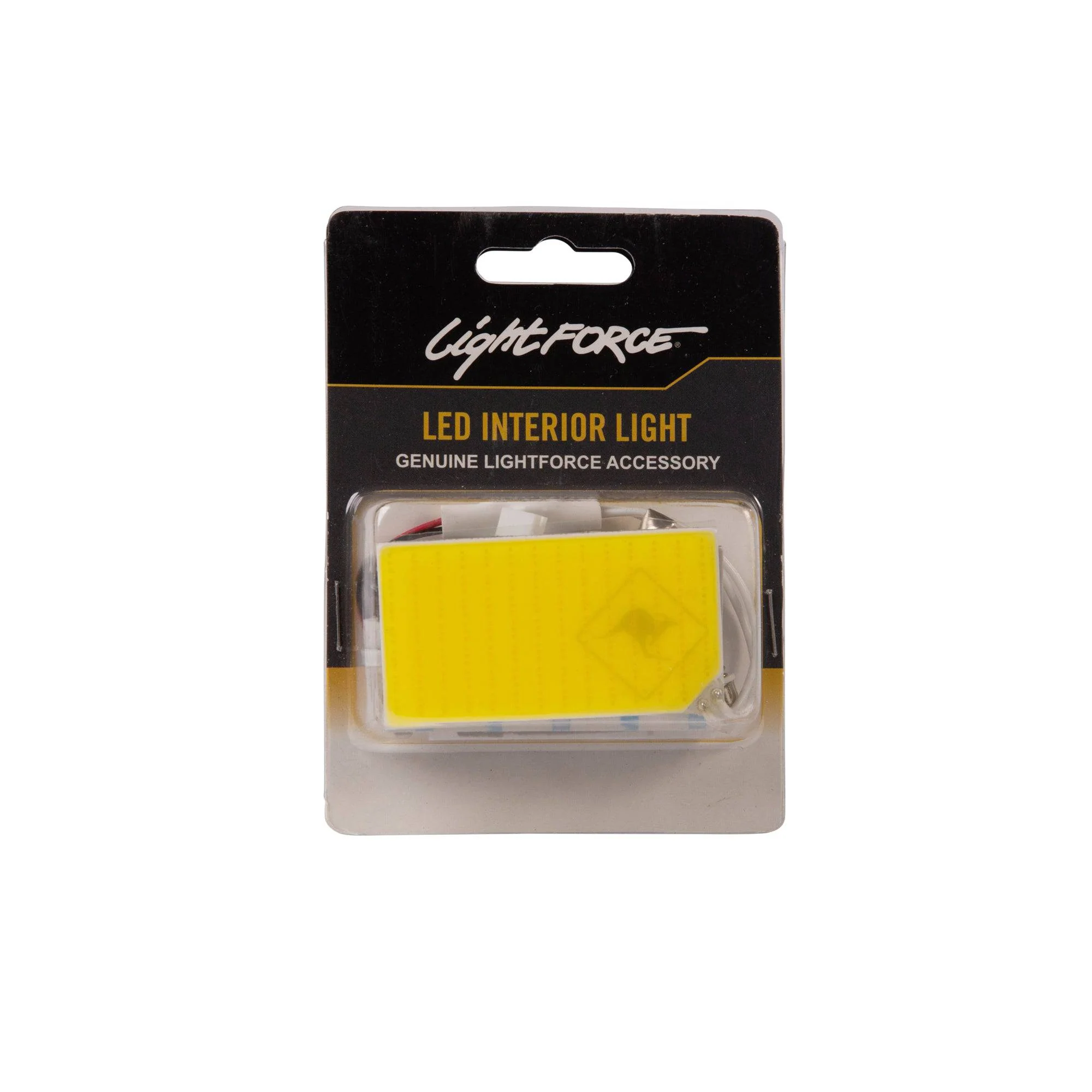

Universal LED Interior Lighting Panel

FEATURES

• COB panels have many advantages over standard single placed SMD’s
• Even lighting distribution being emitted over 180°
• Up to 3 times more intensity than standard 5050 SMD’s
• More light output per surface area
• Super thin, less than 2.8mm in total thickness

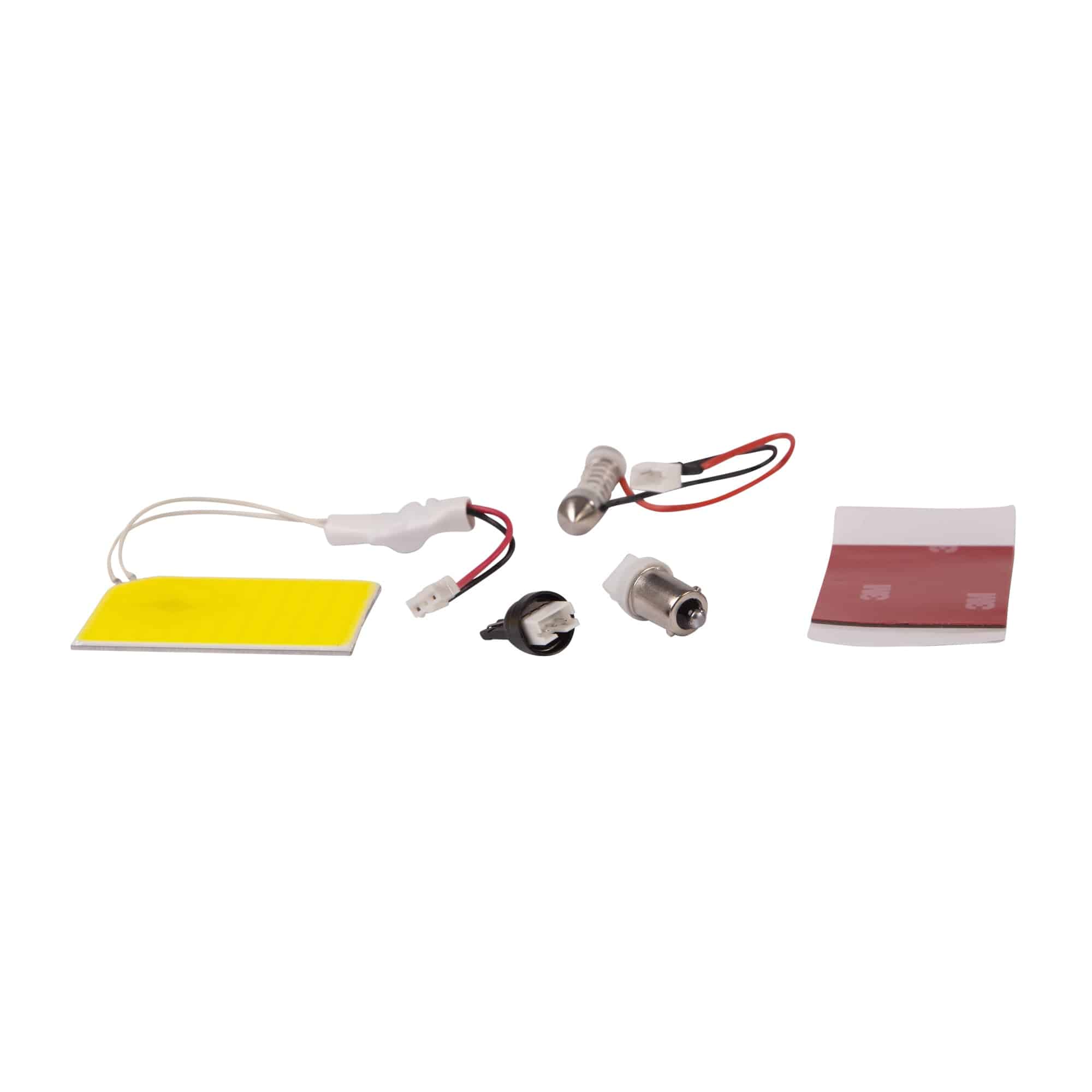

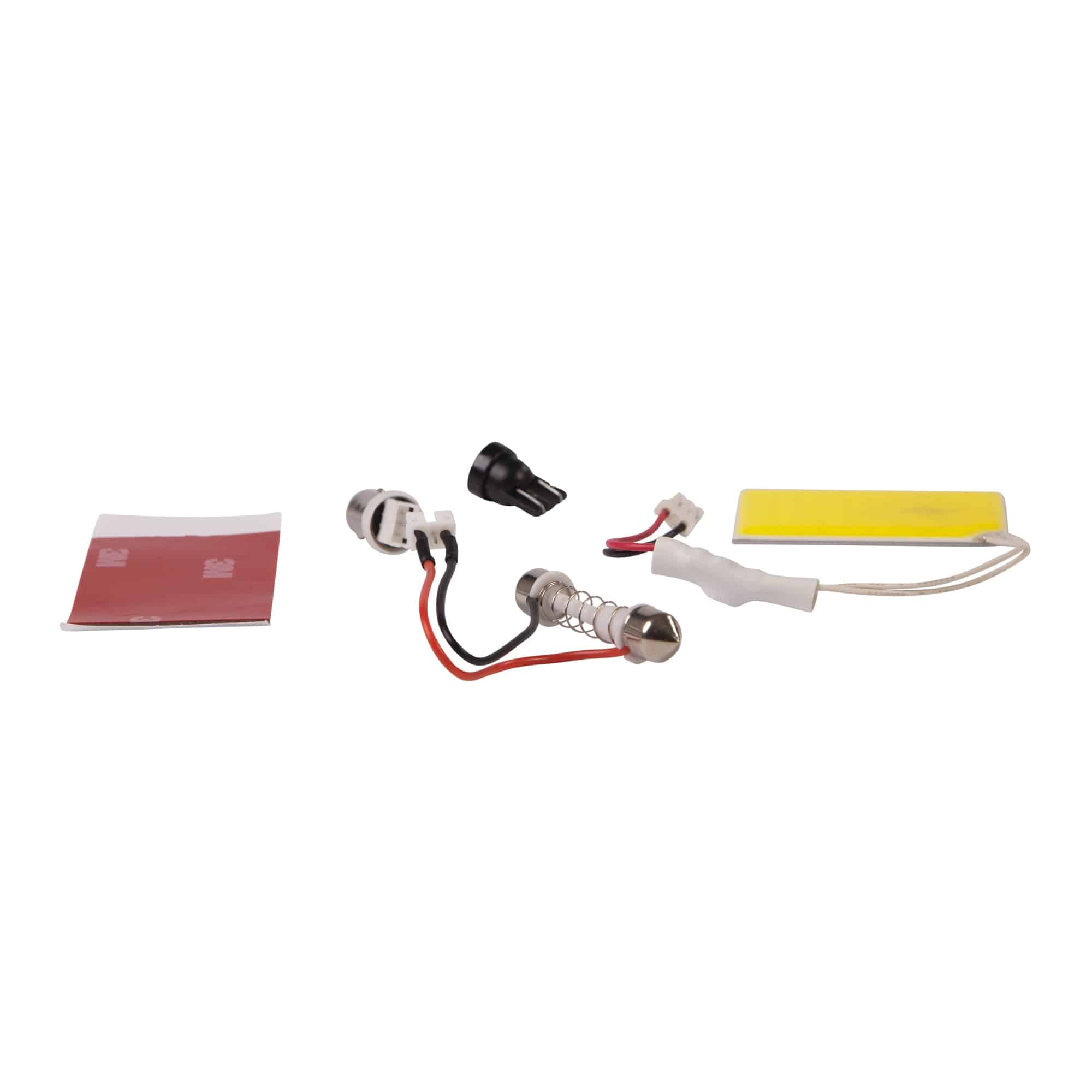

• Not polarity sensitive so all the supplied adaptors can be fitted in any orientation
• Fully regulated IC controlled external driver circuit
• Wide voltage range of 9V-36V DC



SPECIFICATIONS :

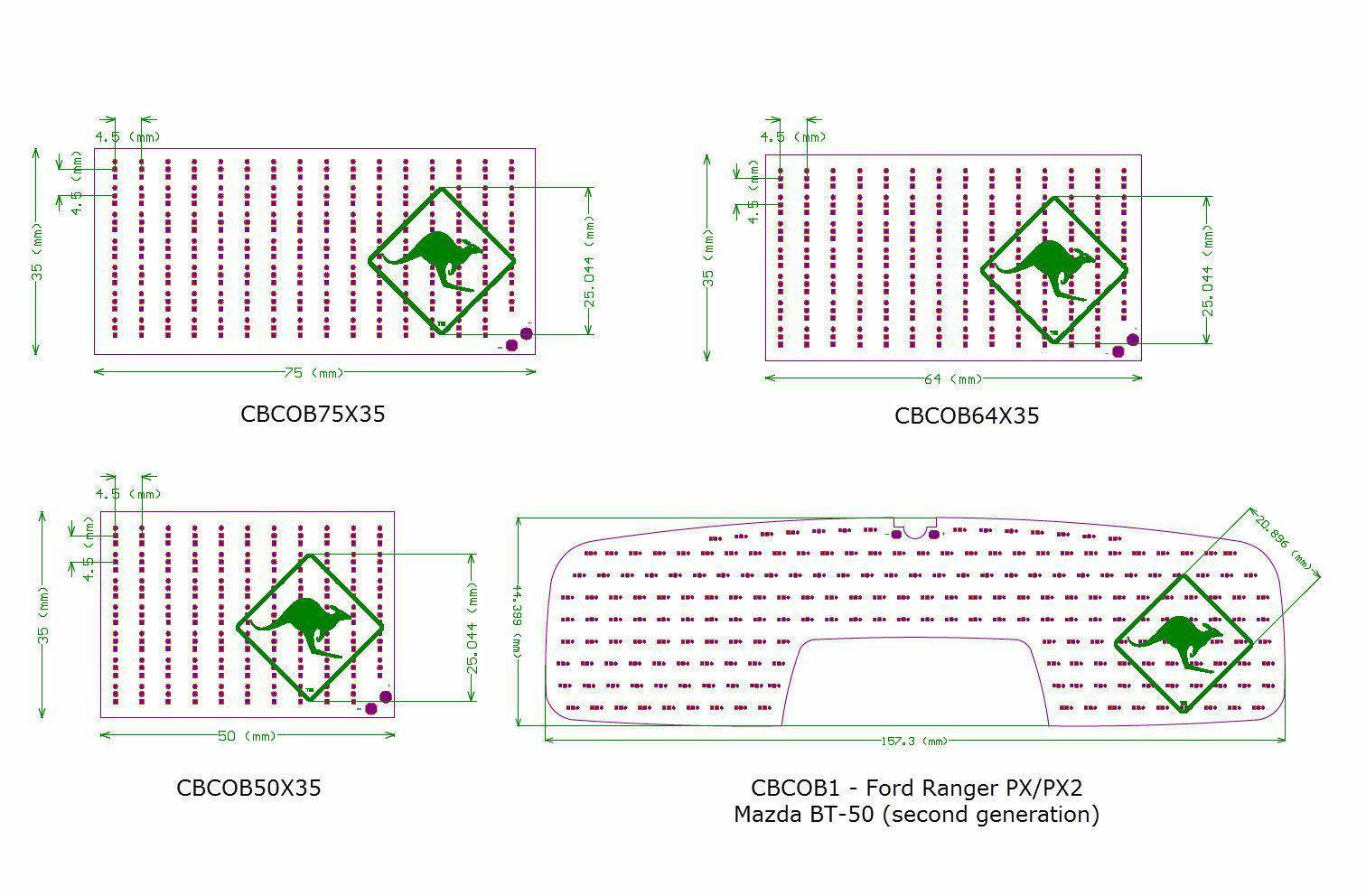

SIZE	Power  (Watts)	Amps @ 12V	Lumen (Effective)	Chip Quantity	Voltage range
50×35mm	3.5W	0.29	249	76	9-36V
64×35mm	3.7W	0.31	282	97	9-36V
75×35mm	4.9W	0.41	359	111	9-36V

A standard 28mm long halogen festoon generates 3 watts of power, produces 29 lumens of light and consumes 0.25 Amps @12v (reference Osram P# 6428)



NEED TO DETERMINE THE IDEAL COB PANEL SIZE FOR YOUR VEHICLE?

• Step 1: Remove the existing interior light cover
• Step 2: Measure for the optimum vertical space as shown
• Step 3: Measure for the optimum horizontal space as shown
• Step 4: Reattach the cover of your interior light
• Step 5: Refer to the above COB panel sizing and ensure your optimum allowable space does not exceed the Lightforce options.
